600M双频无线吸顶式AP
型号：FR-WA3018ANPH-C

规格参数

产品名称	FR-WA3018ANPH-C
主芯片	CPU: Atheros AR9344, MIPs74k 533MHz, for 2.4GHz AR9582 for 5GHz Ethernet: AR8035 10/100/1000M PHY
标准协议	IEEE802.11n IEEE802.11a IEEE802.11g IEEE802.11b IEEE802.310 Base-T IEEE802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3at

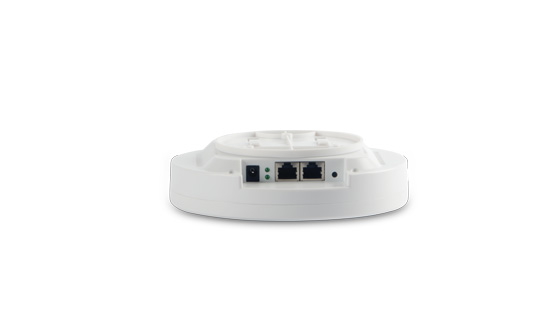

端口	1x LAN: RJ45,10/100/1000M Base-T Interface, support 802.3at POE Capacity; Auto MDI/MDI-X support, 90° 1x Power DC Jack 1x Console by RJ45 1x Reset Button
Flash Memory	8MBytes SPI Flash
DDR Memory	128MBytes DDR2
工作频率	2.4GHz: America / FCC: 2.412~2.462GHz (11 Channels) Europe / ETSI: 2.412~2.472GHz (13 Channels) Japan / TELEC: 2.412~2.484GHz (14 Channels) 5GHz: 5.180-5.240GHz, 5.745-5.825GHz (Up to 9 channels) The actual channels in application will vary depends on the regulation in different regions and countries.
中心频率误差	≤ ±20 ppm

传输速率	802.11n: (20MHz): up to 144.4Mbps (40MHz): up to 300Mbps 802.11g: 6/9/12/24/36/48/54Mbps 802.11b: 1/2/5.5/11Mbps 802.11a: 6/9/12/24/36/48/54Mbps
调制技术	CPU: Atheros AR9344, MIPs74k 533MHz, for 2.4GHz AR9582 for 5GHz Ethernet: AR8035 10/100/1000M PHY
MTBF	>10万小时
传输功率	2.4GHz: 802.11b: 26±1dBm 802.11g(54Mbps): 23±1.5dBm 802.11n(MCS7): 23±1.5dBm 5GHz: 802.11a(54Mbps): 17±1.5dBm 802.11n(MCS7): 16±1.5dBm
接收灵敏度	2.4GHz: 802.11b (11Mbps): -90dBm 802.11g (54Mbps): -75dBm 802.11n 20M (MCS7): -90dBm 802.11n 40M (MCS7): -72dBm 5GHz: 802.11a (54Mbps): -72dBm 802.11n 20M (MCS7): -70dBm 802.11n 40M (MCS7): -67dBm
天线	2.4G: 3dBi内置天线2根 5G: 3dBi内置天线2根
指示灯	系统灯, 网口灯

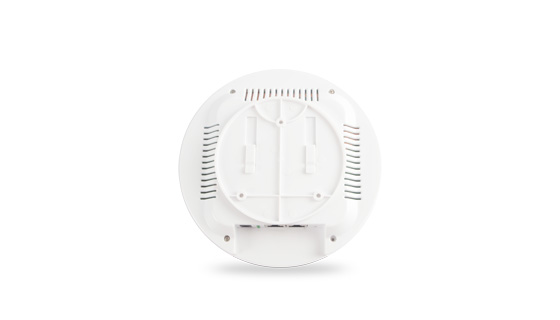

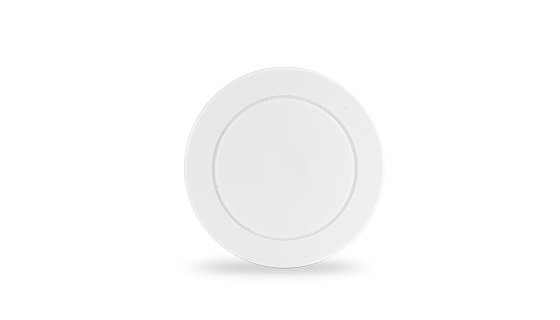

外壳	塑料吸顶
