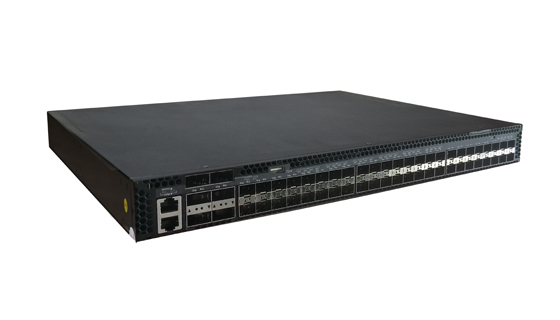

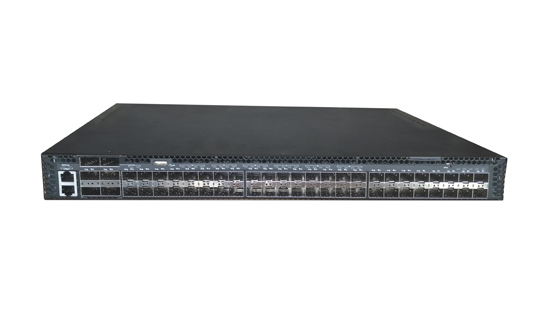

端口

· 48 x SFP+ 支持 10GbE or 1GbE

· 6 x QSFP 支持 40GbE or 4 x 10GbE

· 前面板管理端口

· 1 x RJ-45 串口

· 1 x RJ-45 100/1000BASE-T管理口

· 1 x USB Type A 存储口

硬件配置

· 交换芯片: Broadcom BCM56864 Trident II+

· CPU : Intel Atom C2538 quad-core 2.4GHz x86 processor

· 8 GB SO-DIMM DDR3 RAM with ECC

· 16 MB SPI

· 8 GB NAND 闪存

性能指标

· 交换容量: 1.44 Tbps full duplex

· 转发速率: 1 Bpps

· 缓存: 16 MB integrated packet buffer

· MAC 地址: 32 K min./288 K max.

· VLAN IDs: 4 K

· 支持4 K ECMP 组

· IPv4: 16 K min./112 K max. host entries; 16 K LPM entries with

· IPv6: 8 K min./56 K max. host entries; IPv6/64=8K TCAM-only mode

支持的接口和线缆

· SFP+ Ports:

· 10GBASE-CR DAC: up to 5 m 被动; up to 10 m 主动

· 10GBASE-SRL/SR: up to 100/300 m over OM3 MMF

· 10GBASE-LR: Up to 10km over SMF 10GBASE-

· 1000BASE-SX, 1000BASE-LX, 100/1000BASE-T

· QSFP Ports:

· 40GBASE-CR4 DAC; 0.5 m to 7 m; 被动和主动

· 40GBASE-CR4 DAC to 4 x SFP+

· 40GBASE-SR4: Up to 100 m over OM3 MMF, 150 m over OM4 MMF

· 40GBASE-LR4: Up to 10 km over SMF

物理规格和环境参数

· 尺寸(WxDxH): 44.3 x 47.3 x 4.34 cm

· 重量: 8.95 kg, 含两个 PSU 模块

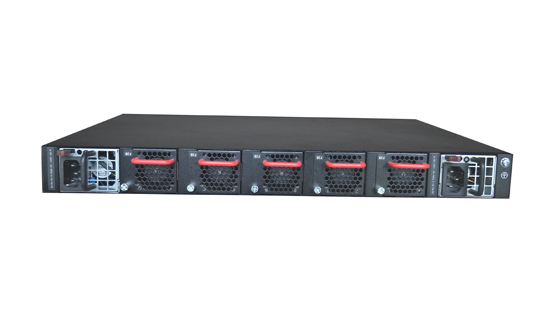

· 风扇: hot-swappable 4+1 redundant fans

· 运行温度: 0°C to 40°C (32°F to 104°F)

· 存放温度: -40°C to 70°C (-40°F to 158°F)

· 湿度: 5% to 95% non-condensing
